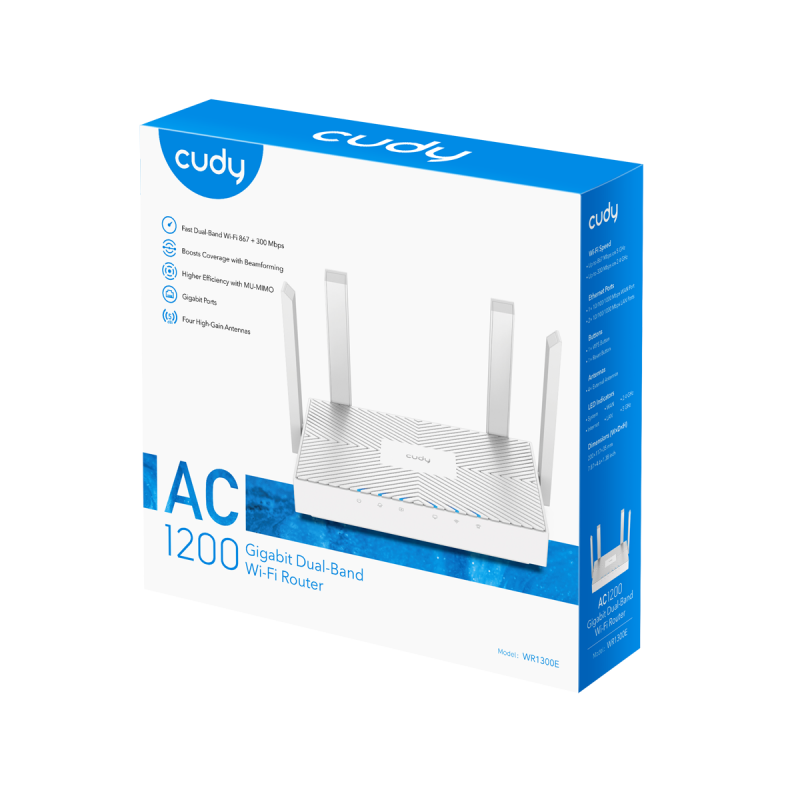

ROUTER WIRELESS CUDY WR1300E AC1200 GIGABIT DUAL B

Versión del modelo WR1300E 2.0

CPU CPU Details 880 MHz Dual-Core, MIPS1004Kc

Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR

DDR/RAM 128 MB (1 Gbit) DDR3

Wireless 5 GHz Wi-Fi Speed 867 Mbps

2.4 GHz Wi-Fi Speed 300 Mbps

5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas 4× Fixed

5 GHz Antenna Gain Max 5.99dBi

2.4 GHz Antenna Gain Max 5.24dBi

FEM or PA/LNA

5 GHz: 2× Internal

2.4 GHz: 2× Internal

Beamforming True

Range Performance Max: 170 m (558 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'')

Interfaces Gigabit RJ45 Ports 3

Ethernet Notes 1× WAN port, the rest are LAN ports1× WAN port, the rest are LAN ports

LED

5 GHz Wi-Fi

2.4 GHz Wi-Fi

LAN

Internet

Power

WPS

System

Physical Buttons

WPS Button

Reset Button

Power Input DC Jack

Power Power Methods DC

DC Input 12V 1A

Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W) 9.12W

Idle Power Consumption (W) 3.58W

Reliability Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CE

Mechanical Installation

Desktop

Wall-mount

Dimension 183.3×109×35 mm

7.22×4.29×1.38 inches

Product Weight 240 g (8.47 oz.)

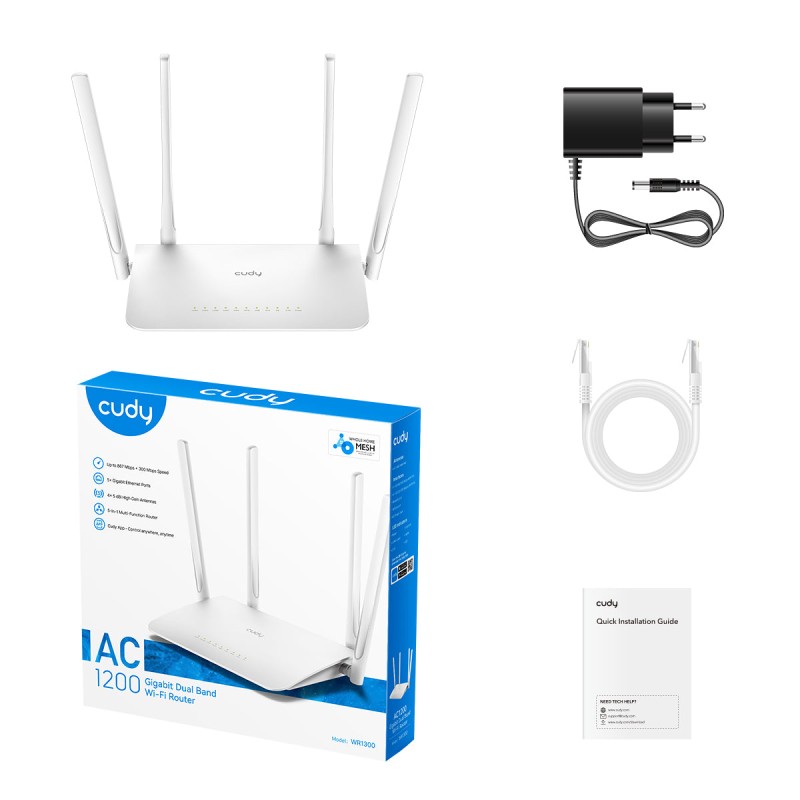

Package Content

WR1300E

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information Retail Package Weight 570 g (20.11 oz.)

Retail Package Dimension 240×230×60 mm

9.45×9.06×2.36 inches

Units per Carton 20

Carton Dimension 49.5×32.5×48 cm

19.49×12.8×18.9 inches

Carton Gross Weight 12.5 kg (27.56 lbs)

Carton Net Weight 11.5 kg (25.35 lbs)
