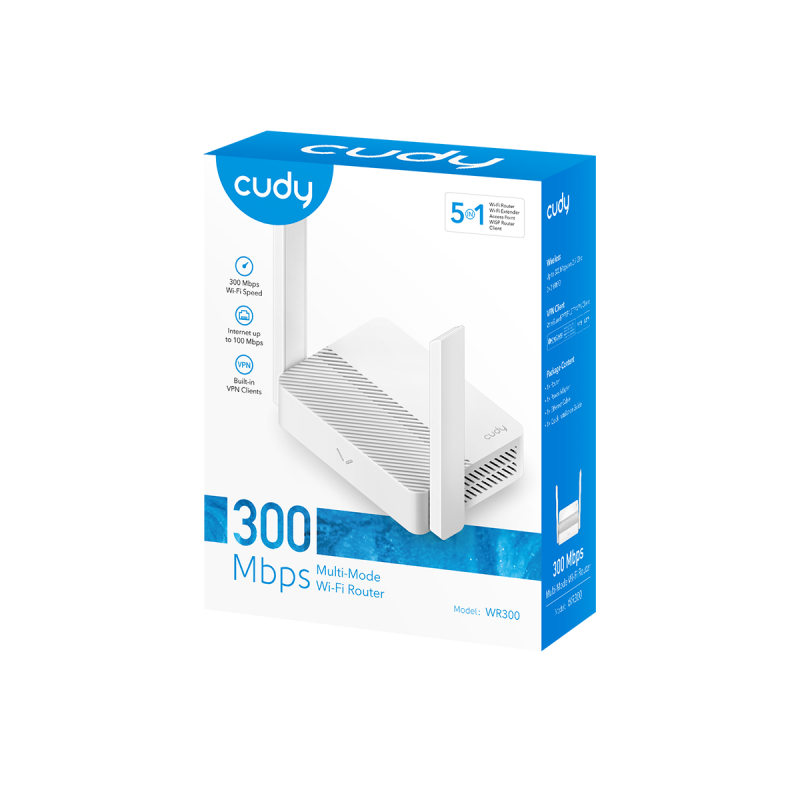

ROUTER WIRELESS CUDY WR300 300 MBPS 5 EN 1

Versión del modelo WR300 1.0

CPU CPU Details 580 MHz Single-Core, MIPS24KEC

Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR

DDR/RAM 64 MB (512 Mbit) DDR2

Wireless 2.4 GHz Wi-Fi Speed 300 Mbps

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas 2× Fixed

FEM or PA/LNA 2.4 GHz: 2× Internal

Range Performance Max: 130 m (427 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance One wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 10 cm (4'')

Interfaces 10/100 Mbps RJ45 Ports 4

Ethernet Notes 1× WAN port, the rest are LAN ports

LED System

Physical Buttons

WPS Button

Reset Button

Power Input DC Jack

Power Power Methods DC

DC Input 5V 1A

Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC

Output: 5V 1A DC

Reliability Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CE

Mechanical Installation Desktop

Dimension 118×80×27.5 mm

4.65×3.15×1.08 inches

Product Weight 120 g (4.23 oz.)

Package Content

WR300

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information Retail Package Weight EU: 336 g (11.85 oz.)

Retail Package Dimension 176×140.5×56 mm

6.93×5.53×2.2 inches

Units per Carton 40

Carton Dimension 60×30×37.5 cm

23.62×11.81×14.76 inches

Carton Gross Weight EU: 14.4 kg (31.75 lbs)

Carton Net Weight EU: 13.4 kg (29.54 lbs)
