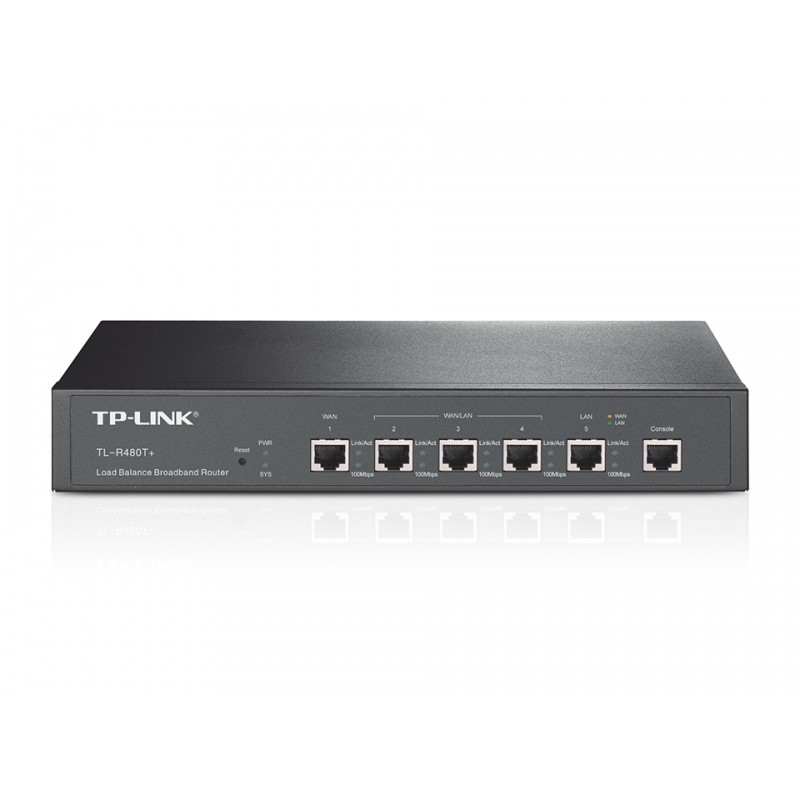

ROUTER LOAD BALANCE TP-LINK TL-R480T+

CARACTERÍSTICAS DE HARDWARE

Estándares y Protocolos

IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS

Interface

1 Fixed Ethernet WAN Port

1 Fixed Ethernet LAN Port

3 Changeable Ethernet WAN/LAN Ports

Medios de Red

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

Botón

Reset Button

Fuente de Alimentación

Internal Universal Power Supply

AC100-240V~50/60Hz input

Flash

8MB

DRAM

64MB

LED

PWR, SYS, WAN, LAN, WAN/LAN

Dimensiones (W X D X H)

11.6*7.1*1.7in. (294*180*44mm)

13-inch Standard Rack-Mount Width, 1U Height

RENDIMIENTO

Sesiones Concurrentes

30000

FUNCIONES BÁSICAS

WAN Connection Type

Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable

MAC Clone

Modify WAN/LAN MAC Address

DHCP

DHCP Server/Client, DHCP Address Reservation

Configuración Switch

Port Mirror, Rate Control, Port Configuration, Port VLAN

FUNCIONES AVANZADAS

Access Control

IP/MAC/URL/WEB Filtering

IGMP

IGMP Proxy/IGMP Snooping

Forwarding

Virtual Server, Port Triggering, DMZ

Equilibrio de carga

Policy Routing, Link Backup

NAT

One-to-One NAT, Multi-Nets NAT

Routing

Static Routing

Seguridad

FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death

Control de Trafico

Bandwidth Control, Session Limit

ADMINISTRACIÓN

Servicio

PPPoE Server, E-Bulletin, Dynamic DNS, UPnP, App Control

Mantenimiento

Time Setting, Daylight Saving Time, SNMP, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics

Otros

Certificación

CE, FCC, RoHS

Requisitos del Sistema

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux

Ambiente

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
