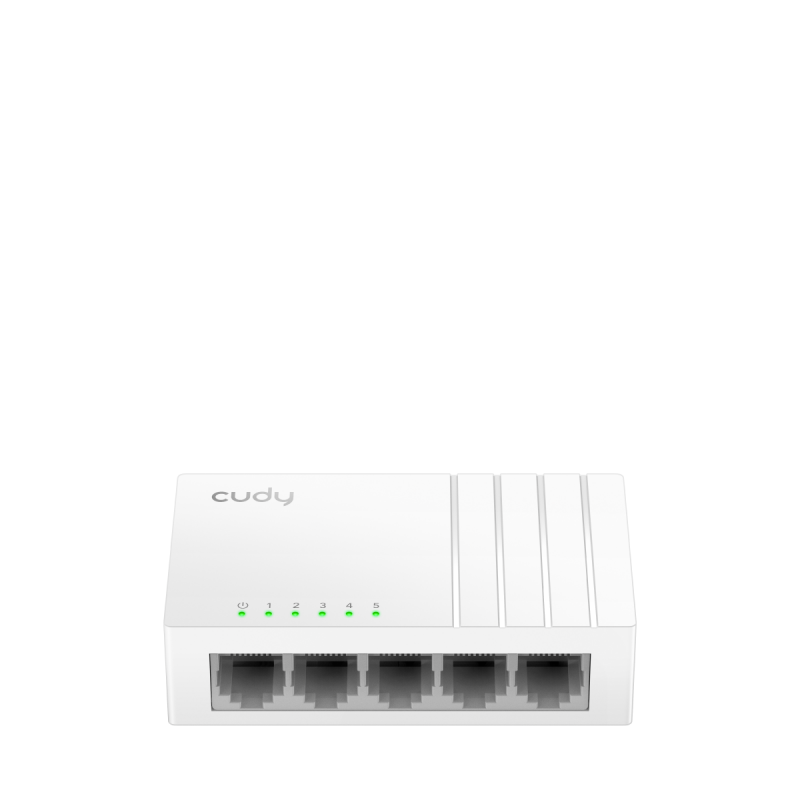

SWITCH CUDY GS105U 5 PUERTOS GIGA SPLIT USB-C

Versión del modelo GS105U 1.0

Interfaces Gigabit RJ45 Ports 5

LED

Power

Speed/Link/ACT of Each Ethernet Port

Power Input USB-C Port

Performance Copper Speed and Distance

Cat. 3 or higher cable: 100 meters at 10 Mbps

Cat. 5 or higher cable: 100 meters at 100 Mbps

Cat. 5e or higher cable: 140 meters at Gigabit

MAC Address Table 2048

Max Switching Capacity 10 Gbps

Max Forwarding Rate 7.44 Mpps

Jumbo Frame 15 KB

Packet Buffer 3 Mbit

Power Basic Power Saving True

Power Methods DC via USB-C Jack

DC 5V⎓0.55A

Max Power Consumption 2W

Idle Power Consumption 1.4W

Switching 802.3 Protocols

802.3x Flow Control

802.3i 10BASE-T

802.3u 100BASE-TX

802.3ab 1000BASE-T

Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV

IEC/EN 61000-4-5, Level 3 Surge: 2kV

Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

Mechanical Dimension 88×52.5×24 mm

3.46×2.07×0.94 inches

Product Weight 53 g (1.87 oz.)

Casing Material Plastic

Installation

Desktop

Wall-mount

Package Content

GS105U

Installation Guide

USB-A to USB-C Power Cable

Ordering Information Retail Package Dimension 92×89×48 mm

3.62×3.5×1.89 inches

Retail Package Weight EU: 124 g (4.37 oz.)

Units per Carton 100

Carton Net Weight EU: 12.4 kg (27.34 lbs)

Carton Gross Weight EU: 13.2 kg (29.1 lbs)

Carton Dimension 48.3×26.7×38 cm

19.02×10.51×14.96 inches
