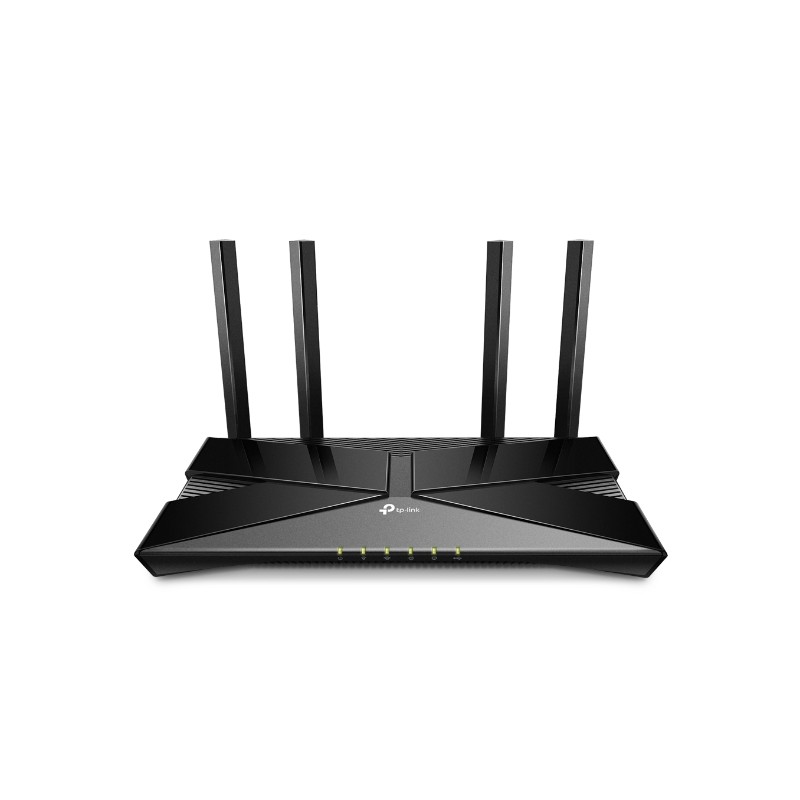

ROUTER WIRELESS TP-LINK ARCHER AX20 AX1800 WIFI6

INALAMBRICO

Estándares Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Velocidad WiFi AX1800

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

Rango WiFi 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

Capacidad WiFi High

Dual-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

4 Streams

Connect your devices to more bandwidth

Modos de trabajo Router Mode

Access Point Mode

HARDWARE

Procesador 1.5 GHz Quad-Core CPU

Puertos ethernet 1× Gigabit WAN Port

4× Gigabit LAN Ports

Soporte USB 1× USB 2.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Botones WPS/Wi-Fi Button

Power On/Off Button

LED On/Off Button

Reset Button

Energía 12 V ⎓ 1.5 A

SEGURIDAD

Cifrado WiFi WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Seguridad de la red SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Red de invitados 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

Servidor VPN OpenVPN

PPTP

SOFTWARE

Protocolos IPv4

IPv6

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Controles parentales URL Filtering

Time Controls

Tipos de WAN Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Calidad de servicio QoS by Device

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Gestión Tether App

Webpage

Check Web Emulator>

FÍSICO

Dimensiones (Al x An x Pr) 10.2 × 5.3 ×1.5 in

(260.2 × 135.0 × 38.6 mm)

contenidos del paquete Wi-Fi Router Archer AX20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTRO

Requisitos del sistema Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certificaciones FCC, CE, RoHS

Ambiente Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

DATOS DE PRUEBA

Potencia de transmisión WiFi CE:

<20dBm(2.4 GHz)

<23dBm(5.15 GHz~5.25 GHz)

FCC:

<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

Sensibilidad de recepción WiFi 5 GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm

11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm

11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm

11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm

11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm

11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm

11ax HE80_MCS11:-58dBm

2.4 GHz:

11g 6Mbps:-97dBm

11n HT20_MCS0:-97dBm

11n HT20_MCS7:-78dBm

11n HT40_MCS0:-95dBm

11n HT40_MCS7:-75dBm

11ac VHT20_MCS0:-96dBm

11ac VHT20_MCS11:-67dBm

11ac VHT40_MCS0:-94dBm

11ac VHT40_MCS11:-64dBm

11ax HE20_MCS0:-96dBm

11ax HE20_MCS11:-64dBm

11ax HE40_MCS0:-93dBm

11ax HE40_MCS11:-61dBm
