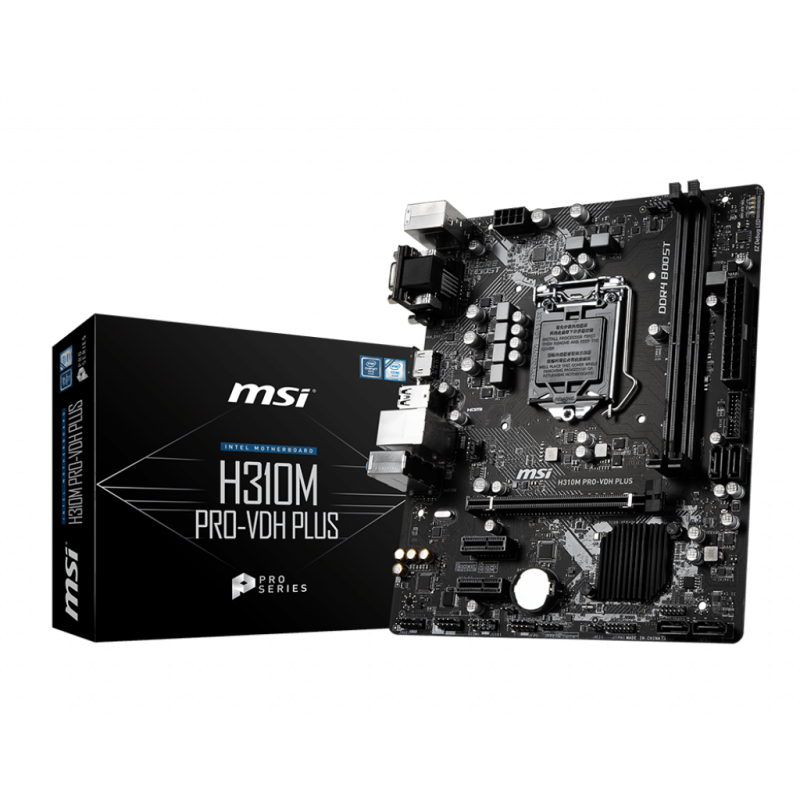

MOTHER MSI H310M PRO-VDH PLUS SOC 1151/OEM

·         Soportes 8 de Gen Intel ®  Core ™ / Pentium ®  Oro / Celeron ®  procesadores LGA 1151 socket

·         Admite memoria DDR4, hasta 2666 MHz

·         Aumento de audio: recompense sus oídos con calidad de sonido de estudio.

·         LED EZ Debug: la forma más sencilla de solucionar problemas.

·         X-Boost: software que detecta automáticamente y le permite aumentar el rendimiento de cualquier almacenamiento o dispositivo USB.

·         Core Boost: con un diseño premium y un diseño de energía totalmente digital para admitir más núcleos y proporcionar un mejor rendimiento.

https://latam.msi.com/Motherboard/H310M-PRO-VDH-PLUS/Overview

PROCESSOR

Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151

See supported processors

CHIPSET1

1.    This chipset is ME11 firmware based and doesn't feature SDA3.0.

Intel® H310 Chipset

This chipset is ME11 firmware based and doesn’t feature SDA3.0.

MEMORY

·         2 x DDR4 memory slots, support up to 32GB

·         Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1

·         Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)1

·         Supports Dual-Channel mode

·         Supports non-ECC, un-buffered memory

·         Supports Intel® Extreme Memory Profile (XMP)

1.    2666 MHz for I7 and I5 processors only.

See supported memory

SLOTS

·         1 x PCIe 3.0 x16 slot

·         2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

·         1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

·         1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

·         1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H

1.    Supports up to 2 displays simultaneously.

STORAGE

Intel® H310 Chipset

·         4 x SATA 6Gb/s ports

o    Supports Intel® Rapid Storage Technology

USB

Intel® H310 Chipset

·         4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

·         6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek® ALC887 Codec

·         7.1-Channel High Definition Audio

LAN

·         1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

·         1 x 24-pin ATX main power connector

·         1 x 8-pin ATX 12V power connector

·         4 x SATA 6Gb/s connectors

·         1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

·         1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)

·         1 x Clear CMOS jumper

·         2 x Front panel connectors

·         1 x Serial port connector

·         1 x TPM module connector

·         1 x Chassis Intrusion connector

·         1 x Front panel audio connector

·         1 x 4-pin CPU fan connector

·         1 x 4-pin system fan connector

BACK PANEL PORTS

1.    PS/2 Combo Port

2.    VGA Port

3.    HDMI Port

4.    USB 3.1 Gen1

5.    LAN Port

6.    HD Audio Connectors

7.    USB 2.0 Port

8.    DVI-D Port

9.    USB 2.0 Port



DIMENSIONS

·         8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)

·         m-ATX Form Factor

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
