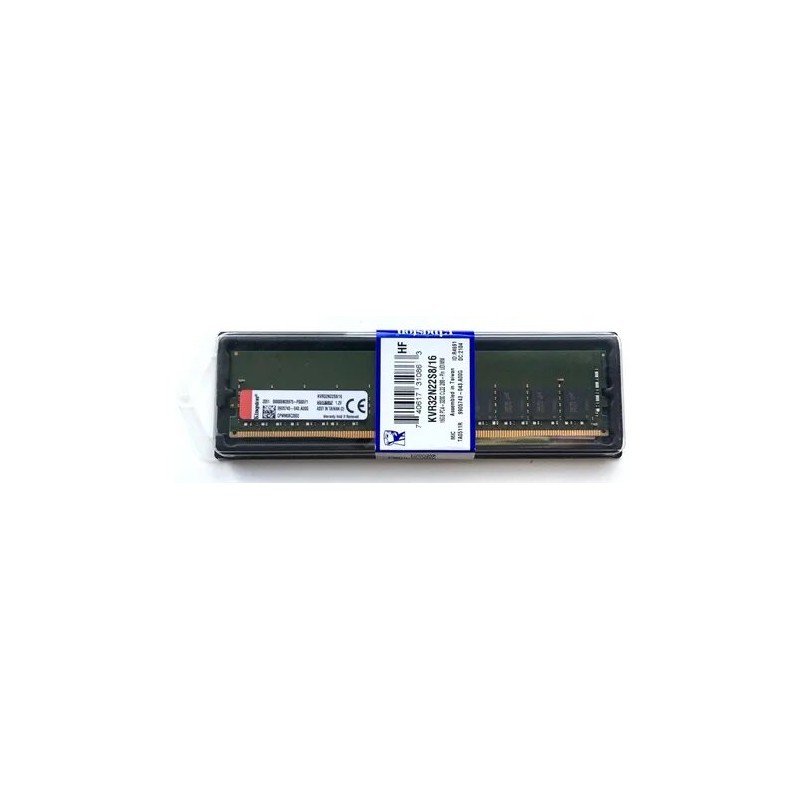

DDR4 KINGSTON 16GB PC4 3200 KVR32N22S8/16

KVR32N22S8/16

16GB 1Rx8 2G x 64-Bit PC4-3200

CL22 288-Pin DIMM

Continued >>

FEATURES

This document describes ValueRAM's KVR32N22S8/16 is a 2G x

64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8,

memory module, based on eight 2G x 8-bit FBGA components. The

SPD is programmed to JEDEC standard latency DDR4-3200 timing of

22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The

electrical and mechanical specifications are as follows:

CL(IDD)

Row Cycle Time (tRCmin)

Refresh to Active/Refresh

Command Time (tRFCmin)

Row Active Time (tRASmin)

UL Rating

Operating Temperature

Storage Temperature

22 cycles

45.75ns(min.)

350ns(min.)

32ns(min.)

94 V - 0

0o

 C to +85o

 C

-55o

 C to +100o

 C

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for

 data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

• Single-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8

 via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free
